Solazone Ventilation

Solazone Alley Cat Solar Roof Ventilator

Solazone Alley Cat Solar Roof Ventilator

Regular price $1,114.00 AUD
Regular price Sale price $1,114.00 AUD
Sale Sold out
Add on: Night operation pack
Add on: Bushfire-rated mesh
Colorbond +$85 Default Black: Black

Alley Cat – AV40  (40 watts)

The solar roof ventilator that has a soft aluminium base that shapes to the tiles.  Can be used on any type of roof - is lightweight and extremely flexible.  The solar panel may be installed on top of the fan hood, or remotely, up to 5m away.

  • Where shading is a problem or when you want to install the solar roof ventilator separate from the solar panel, use this model with its remote solar panel and extended 5m lead.
  • Use this if it is not practical to install the Solar Roof Ventilator in a place where it will get full sunlight all day.  eg  A south-facing roof, or in the shade.

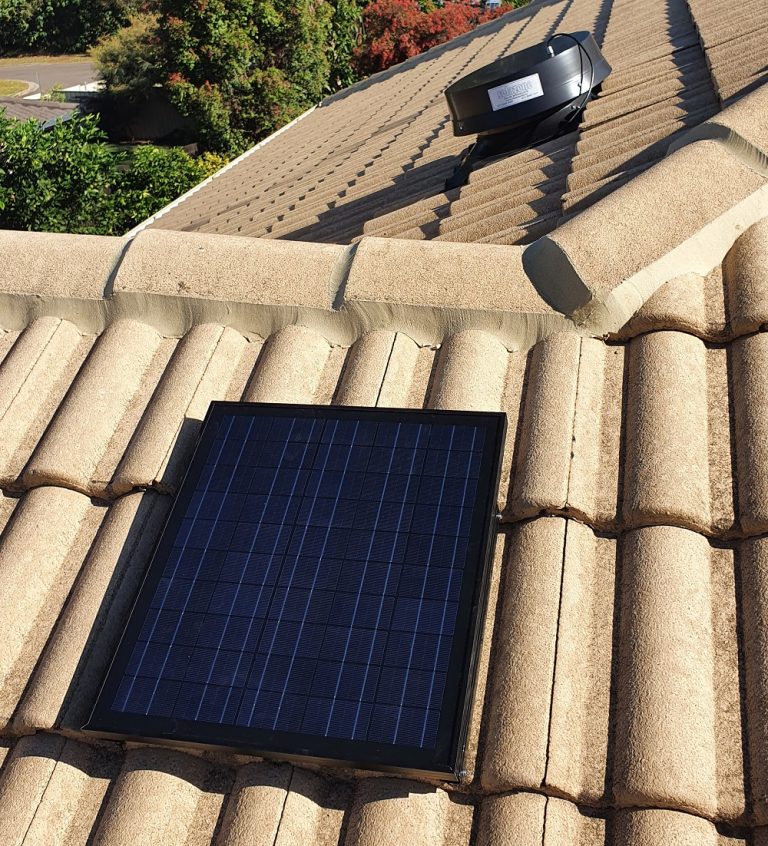

  • Overcome shading problems by installing the Solazone Alley Cat roof ventilator solar panel up to 5 metres away from the fan.
  • This unit has the benefit of a low profile, so it is not so prominent on the roof, and in some cases may not be seen at all.



Specifications of the Alley Cat – AV40

Max Capacity 3140 Cubic Metres per Hour (m³/h)
1855 Cubic Feet per Minute (cfm)
Solar panel 40 watt
Fan Decibel <60 Decibels (dBA)
Dimensions 580 mm × 580 mm × 210 mm
Box Dimensions 630 mm × 310 mm × 630 mm
Throat Diameter 450 mm
Weight 5.3 kg
Colours Black, or any Colorbond colour
Night Operations Available, with Constant Current day boosting
