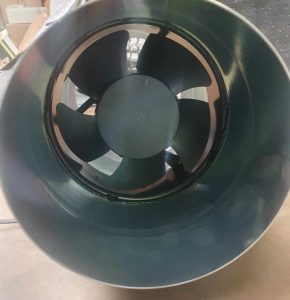

Solar sub-floor 20w inline fan kit with 150mm duct connections

150 mm 20-watt fan kit, with EPDM suspension straps, 20-watt solar panel with adjustable frame & 5 metres of wire

May deliver up to 400 m3/hr, depending upon sunlight conditions and design of the ductwork.

• The solar panel can be installed on any sunny roof or wall, brackets supplied.
• 5m of wire is included, to connect the fan to the solar panel.
• For best effect, install it to draw fresh air across the sub-floor space, using the duct to pick up damp air from the most moist area.
• Optional 5m extension leads with plugs available.

 Easy to install.

• Completely safe, 24-volt DC – no dangerous wiring, leads plug together.
• Runs on dry sunny days, and will completely dry out the sub-floor area.
• Kits contain the fan with housing, a matched solar panel with mounting brackets, electrical cable, wiring, and instructions.
• Dimensions for the solar panel:  470mm x 360mm x 25mm
• Simple installation – just suspend the solar-powered sub-floor fan using the rubber straps provided.  The 150mm duct or PVC pipe should draw air from the most moist area to the outside.  Maintain a fall on the duct so condensation does not settle in the fan.
• 2-year warranty.
